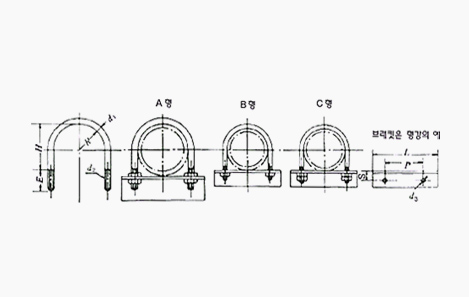

U BOLT
DIMENSION
呼稱 치수 A |
적용하는 鋼管의 外經 |
U 볼트 | 받침 | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
R | d1 | 나사의 呼稱 | A 形 | B 形 | C 形 | B | t | L | P | S | d3 | |||||
d2 | H | E | H | E | H | E | ||||||||||
15 | 21.7 | 12 | 10 | M10 | 39 | 20 | 47 | 30 | 40 | 5 | 82 | 34 | 22 | 12 | ||
20 | 27.2 | 15 | 10 | M10 | 45 | 20 | 53 | 30 | 40 | 5 | 88 | 40 | 22 | 12 | ||
25 | 34 | 18 | 10 | M10 | 52 | 20 | 60 | 30 | 40 | 5 | 94 | 46 | 22 | 12 | ||
32 | 42.7 | 23 | 10 | M10 | 60 | 20 | 68 | 30 | 40 | 5 | 104 | 56 | 22 | 12 | ||
40 | 48.6 | 26 | 10 | M10 | 66 | 20 | 74 | 30 | 40 | 5 | 110 | 62 | 22 | 12 | ||
50 | 60.5 | 32 | 10 | M10 | 78 | 20 | 86 | 30 | 40 | 5 | 122 | 74 | 22 | 12 | ||
65 | 76.3 | 40 | 12 | M12 | 98 | 25 | 108 | 35 | 50 | 6 | 152 | 92 | 30 | 15 | ||
80 | 89.1 | 46 | 12 | M12 | 110 | 25 | 120 | 35 | 50 | 6 | 164 | 104 | 30 | 15 | ||
90 | 101.6 | 52 | 12 | M12 | 123 | 25 | 133 | 35 | 50 | 6 | 176 | 116 | 30 | 15 | ||
100 | 114.3 | 59 | 16 | M16 | 141 | 50 | 65 | 8 | 202 | 134 | 35 | 19 | ||||
125 | 139.8 | 72 | 16 | M16 | 167 | 50 | 65 | 8 | 228 | 160 | 35 | 19 | ||||
150 | 165.2 | 85 | 16 | M16 | 192 | 50 | 65 | 8 | 254 | 186 | 35 | 19 | ||||
175 | 190.7 | 98 | 16 | M16 | 218 | 50 | 65 | 8 | 280 | 212 | 35 | 19 | ||||
200 | 216.3 | 111 | 20 | M20 | 249 | 60 | 75 | 9 | 320 | 242 | 40 | 24 | ||||
225 | 241.8 | 124 | 20 | M20 | 274 | 60 | 75 | 9 | 346 | 268 | 40 | 24 | ||||
250 | 267.4 | 137 4 | 20 | M20 | 300 | 60 | 75 | 9 | 372 | 294 | 40 | 2 | ||||
300 | 318.5 | 163 | 24 | M24 | 357 | 70 | 90 | 10 | 448 | 350 | 50 | 28 | ||||
350 | 355.6 | 181 | 24 | M24 | 394 | 70 | 90 | 10 | 484 | 386 | 50 | 28 | ||||
400 | 406.4 | 207 | 24 | M24 | 444 | 70 | 90 | 10 | 536 | 438 | 50 | 28 | ||||
450 | 457.2 | 233 | 30 | M30 | 505 | 85 | 100 | 13 | 622 | 496 | 55 | 35 | ||||
500 | 508 | 259 | 30 | M30 | 556 | 85 | 100 | 13 | 675 | 548 | 55 | 35 | ||||
550 | 558.8 | 284 | 30 | M30 | 606 | 85 | 100 | 13 | 725 | 598 | 55 | 35 | ||||
600 | 609.6 | 310 | 36 | M36 | 663 | 100 | 130 | 12 | 805 | 656 | 70 | 42 | ||||
650 | 660.4 | 335 | 36 | M36 | 713 | 100 | 130 | 12 | 855 | 706 | 70 | 42 | ||||
700 | 711.2 | 361 | 36 | M36 | 764 | 100 | 130 | 12 | 910 | 758 | 70 | 42 | ||||
750 | 762 | 387 | 36 | M36 | 818 | 100 | 130 | 15 | 960 | 810 | 70 | 42 | ||||
800 | 812.8 | 413 | 42 | M42 | 875 | 115 | 130 | 15 | 1030 | 868 | 70 | 48 | ||||
850 | 863.6 | 439 | 42 | M42 | 926 | 115 | 150 | 15 | 1085 | 920 | 80 | 48 | ||||
900 | 914.4 | 464 | 42 | M42 | 977 | 115 | 150 | 15 | 1135 | 970 | 80 | 48 |

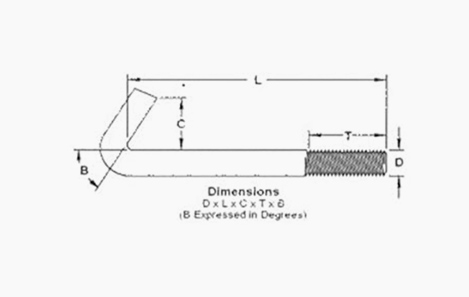

HOOK BOLT
DIMENSION
d | B | C | T | L |
---|---|---|---|---|
1/4-20UNC | 60˚ | 16 +/- 1.0 | 50 +/- 1.0 | 70 +/- 1.5 |
1/4-20UNC | 60˚ | 16 +/- 1.0 | 50 +/- 1.0 | 75 +/- 1.5 |
1/4-20UNC | 60˚ | 16 +/- 1.0 | 50 +/- 1.0 | 80 +/- 1.5 |
1/4-20UNC | 60˚ | 16 +/- 1.0 | 50 +/- 1.0 | 90 +/- 1.5 |
1/4-20UNC | 60˚ | 16 +/- 1.0 | 50 +/- 1.0 | 100 +/- 1.5 |
1/4-20UNC | 60˚ | 16 +/- 1.0 | 50 +/- 1.0 | 110 +/- 1.5 |

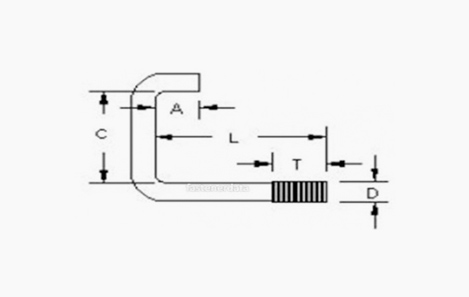

U HOOK BOLT
DIMENSION
d | DIA | A | C | T | L |
---|---|---|---|---|---|
3/8-16UNC | Ø8.4 +/- 0.05 | 15.1 | 47 +/- 1.5 | 60 +/- 1.5 | 100 +/- 1.5 |
3/8-16UNC | Ø8.4 +/- 0.05 | 15.1 | 47 +/- 1.5 | 60 +/- 1.5 | 120 +/- 1.5 |
3/8-16UNC | Ø8.4 +/- 0.05 | 15.1 | 47 +/- 1.5 | 60 +/- 1.5 | 130 +/- 1.5 |

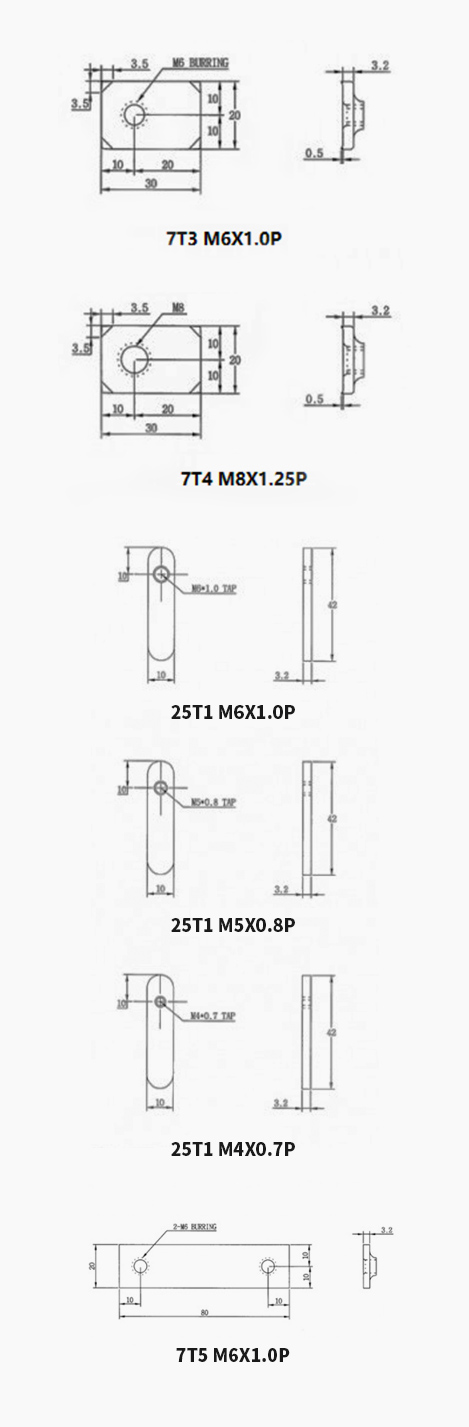

NUT PIECE
T BOLT
DIMENSION
d | A | B | H | L |
---|---|---|---|---|
M8X1.25PX25 | 33.5 | 12 | 5 | 25 |
M10X1.5PX30 | 33.5 | 12 | 6.5 | 30 |
M12X1.75PX30 | 33.5 | 12 | 7.5 | 30 |

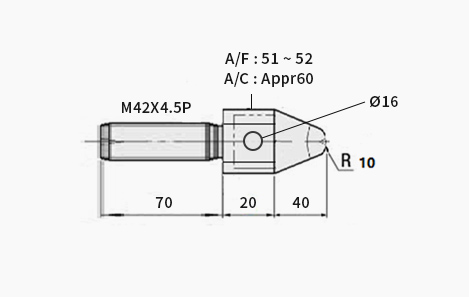

PIN JIG

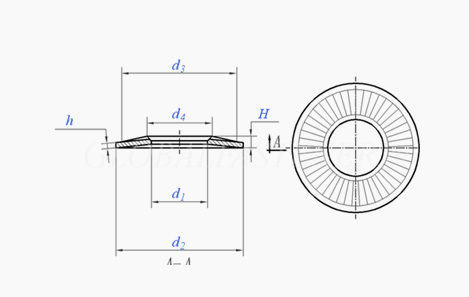

CONICAL WASHER
DIMENSION
Nominal Diameter d | M6 | M8 | M10 | M12 | |
---|---|---|---|---|---|
d1 | min | 6.1 | 8.2 | 10.2 | 12.4 |
max | 6.4 | 8.56 | 10.56 | 12.83 | |
d2 | Nominal Size | 14 | 18 | 22 | 27 |
max | 14.35 | 18.35 | 22.42 | 27.42 | |
min | 13.65 | 17.65 | 21.58 | 26.58 | |
h | Nominal Size | 1.3 | 1.4 | 1.6 | 1.8 |
max | 1.34 | 1.44 | 1.65 | 1.85 | |
min | 1.26 | 1.36 | 1.55 | 1.75 | |
H | min | 1.75 | 1.9 | 2.25 | 2.6 |
max | 2.1 | 2.35 | 2.75 | 3.1 | |
d3 | min | 10 | 13 | 16 | 18 |
d4 | min | 6.8 | 9.2 | 11.2 | 13.7 |
max | 7.4 | 9.8 | 11.9 | 14.4 | |
test load(N) | 9500 | 17500 | 27500 | 40000 |

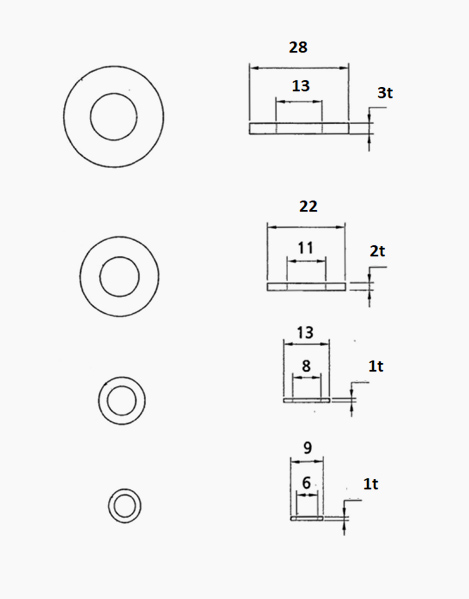

CONICAL WASHER
CONICAL WASHER

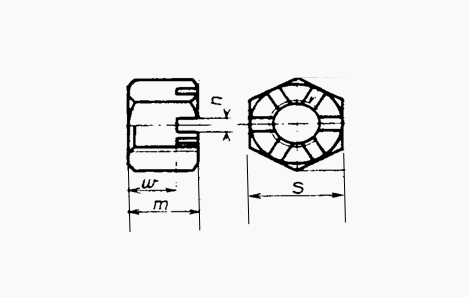

HEXAGON SLOTTED NUTS
DIMENSION
d | S | m | w | n | REMARK | ||||
---|---|---|---|---|---|---|---|---|---|
SPEC | MAX | MIN | MAX | MIN | MAX | MIN | MAX | MIN | |
M10X1.5P | 17.0 | 16.75 | 8.0 | 7.64 | 4.50 | 4.20 | 3.05 | 2.80 | |
M12X1.75P | 19.0 | 18.65 | 10.0 | 9.64 | 6.00 | 5.70 | 3.80 | 3.50 | |
M16X2.0P | 24.0 | 23.65 | 13.0 | 12.6 | 8.0 | 7.6 | 4.8 | 4.5 |

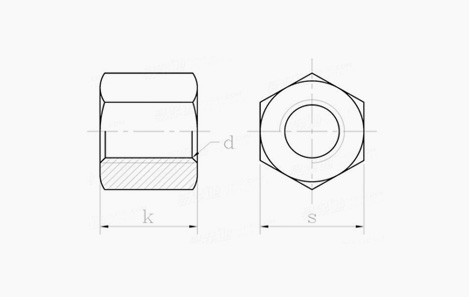

LONG NUT
DIMENSION
Diameter d | Pitch | S | K |
---|---|---|---|
M22 | 2.5 | 34 | 28 |

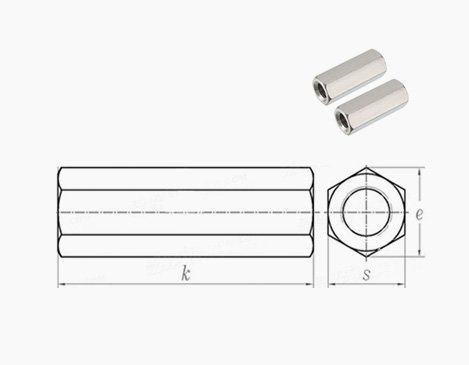

HEX COUPLING NUTS
DIMENSION
Diameter d | Pitch | S | K |
---|---|---|---|
M12 | 1.75P | 19 | 60 |

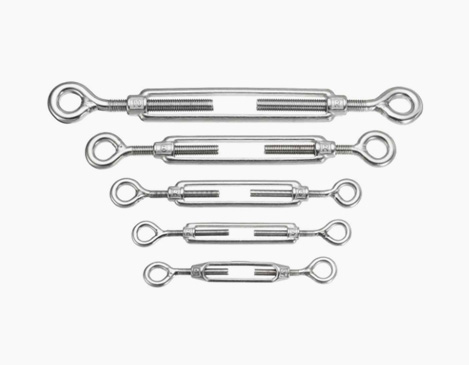

TURNBUCKLE
