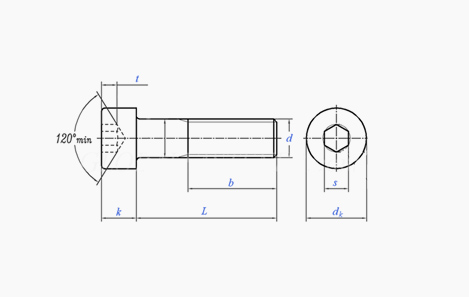

Hexagon socket head cap screws

Hexagon socket head cap screws

  • DIN912
  • MATERIAL : 304, 316, SCr440, SCM440
  • Property Class : A2-70, A4-70, 12.9

DIMENSION

d dk s k t b
M3 5.5 2.5 3 1.3 18
M4 7 3 4 2 20
M5 8.5 4 5 2.5 22
M6 10 5 6 3 24
M8 13 6 8 4 28
M10 16 8 10 5 32
M12 18 10 12 6 36
M14 21 12 14 7 40
M16 24 14 16 8 44
M20 30 17 20 10 52
M22 33 17 22 11 56
M24 36 19 24 12 60
M30 45 22 30 15.5 72
M36 54 27 36 19 84

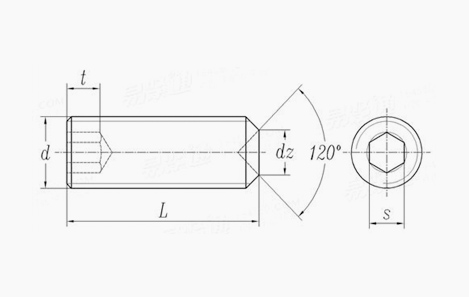

SET SCREWS

SET SCREWS

  • DIN916
  • MATERIAL : 304, 316, SCr440

DIMENSION

d S t
M3 1.5 1.2
M4 2 1.5
M5 2.5 2
M6 3 2
M8 4 3
M10 5 4
M12 6 4.8

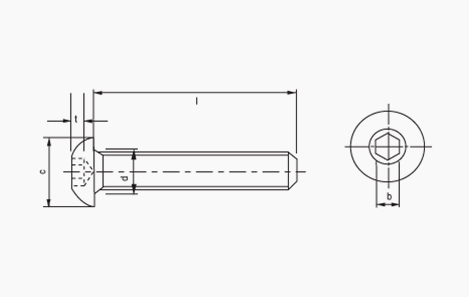

BUTTON HEAD CAP SCREWS

BUTTON HEAD CAP SCREWS

  • ISO7380
  • MATERIAL : 304, SCr440
  • Property Class : 10.9, A2-70

DIMENSION

d c b t
M3 5.7 2 1.04
M4 7.6 2.5 1.4
M5 9.5 3 1.8
M6 10.5 4 2.08
M8 14 5 2.6

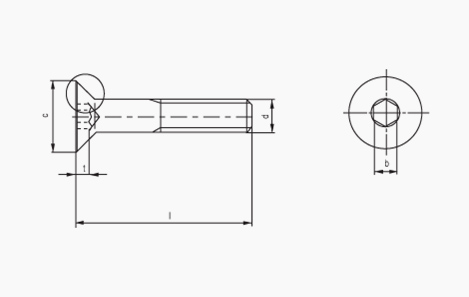

FLAT HEAD CAP SCREWS

  • DIN7991
  • MATERIAL : 304, SCr440
  • Property Class : 10.9, A2-70

DIMENSION

d c b t
M3 6 2 1.2
M4 8 2.5 1.8
M5 10 3 2.3
M6 12 4 2.5
M8 16 5 3.5
M10 20 6 4.4
M12 24 8 4.6
M16 30 10 5.3

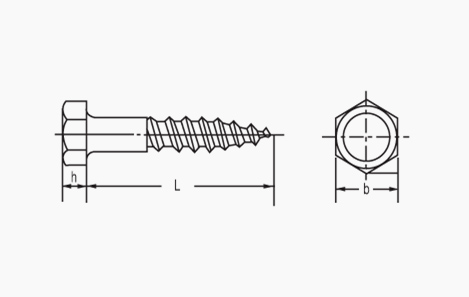

HEX HEAD LAG SCREWS

  • ANSI/ASME B18.2.1-81
  • MATERIAL : MILD STEEL, 304

DIMENSION

d c h
1/4 11 4.5
5/16 12.7 5.2
3/8 14 6.5
1/2 19 9

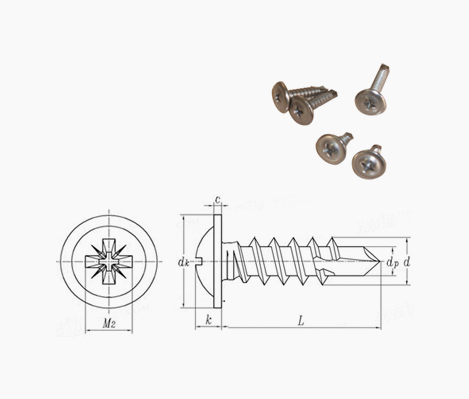

SDS WITH ROUND WASHER

  • MATERIAL:410

DIMENSION

d d k k c d p L
#8 11 2.5 1.3 3.45 13
#8 11 2.5 1.3 3.45 16
#8 11 2.5 1.3 3.45 19
#8 11 2.5 1.3 3.45 25

MACHINE SCREW & TAPPING SCREWS

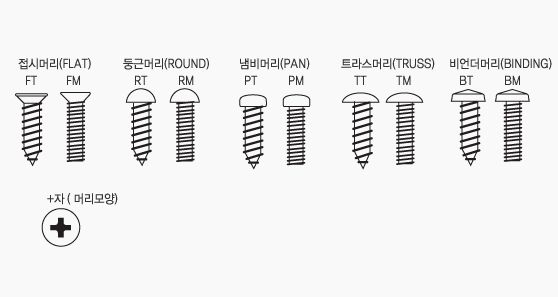

  • PAN HEAD, BIND HEAD, TRUSS HEAD, ROUND HEAD
  • JIS B1111
  • MATERIAL:304
