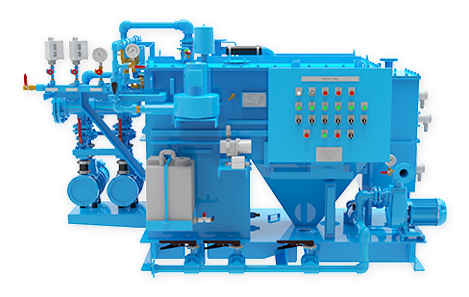

SEWAGE TREATMENT PLANT
ISB SERIES
처리실 내에 다량의 유동성 접촉여재(MBBR)를 통해 배양된 미생물로 오수를 처리하는 분뇨처리장치
DIMENSION
MODEL | CAPACITY (L/Day) |
PERSON | ORGANIC LOAD (kg/Day) |
L | W | H | WEIGHT (kg) |
---|---|---|---|---|---|---|---|
ISB-01 | 1,260 | 18 | 0.63 | 1,862 | 1,173 | 1,519 | 880 |
ISB-02 | 2,100 | 30 | 1.05 | 2,192 | 1,313 | 1,584 | 1,050 |
ISB-03 | 2,800 | 40 | 1.40 | 2,410 | 1,599 | 1,717 | 1,380 |
ISB-04 | 4,200 | 60 | 2.10 | 2,570 | 1,629 | 1,817 | 1,520 |
ISB-06 | 5,600 | 80 | 2.80 | 2,716 | 1,909 | 1,992 | 1,800 |
ISB-07 | 7,000 | 100 | 3.50 | 2,936 | 2,029 | 1,992 | 2,020 |
ISB-09 | 9,100 | 130 | 4.55 | 3,176 | 1,999 | 2,067 | 2,360 |
ISB-11 | 11,200 | 160 | 5.60 | 3,276 | 2,119 | 2,217 | 3,000 |
ISB-15 | 15,400 | 220 | 7.70 | 4,310 | 2,690 | 2,216 | 4,200 |
ISB-23 | 23,100 | 330 | 11.55 | 4,720 | 2,980 | 2,216 | 5,370 |
ISB-33 | 32,900 | 470 | 16.45 | 5,340 | 3,190 | 2,787 | 6,760 |
ISB-41 | 41,000 | 586 | 20.50 | 5,710 | 3,660 | 2,937 | 7,680 |
ISB-48 | 48,000 | 686 | 24.00 | 5,810 | 3,660 | 3,137 | 8,750 |
ISB-65 | 65,000 | 928 | 32.50 | 6,630 | 4,030 | 3,137 | 9,620 |
- 표는 넘겨볼 수 있습니다.
DIAGRAM
